Garden with Insight v1.0 Help: Browser pictures side

On the browser's pictures side, you can see different presentations depending on which type of object is selected.

gif/00000145.gif

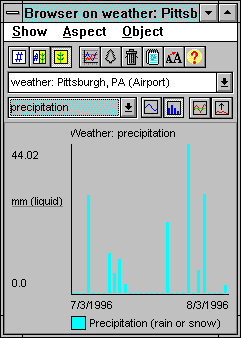

The browser pictures side

To choose from the different presentations, click on the display mode drop-down list box on the pictures side under the list of objects.

For the weather, you can see a 30-day running graph of temperature, precipitation, radiation, wind speed, relative humidity, or day length.

For a soil patch, you can see aspects in the soil profile: color, texture, materials, temperature, roots, pH , nitrogen, and phosphorus.

For a plant, you can see either the drawing of the plant, a biomass breakdown between all plant parts, or plant stresses.

Buttons on the browser pictures side

For the weather, the pictures side has these four buttons.

gif/00000146.gif or Object--Line graph: Show weather values as lines.
gif/00000147.gif or Object--Bar graph: Show weather values as bars.
gif/00000148.gif or Object--Show means: Overlay long-term averages on the simulated values.
gif/00000149.gif or Object--Rescale: Rescale weather values now.

For a soil patch, the pictures side has these buttons:

gif/00000150.gif or check Object--Connect layer values: Merge values for layers in the soil profile into continuous lines.
gif/00000151.gif or uncheck Object--Connect layer values: Keep values for layers in the soil profile as distinct bars.
gif/00000152.gif or Object--Show lines: Show lines between soil layers
gif/00000153.gif or Object--Rescale: Rescale the display now.

For a plant in drawing mode, the pictures side has these buttons:

gif/00000154.gif or Object--Turn left: Turn the plant to the left.
gif/00000155.gif or Object--Turn right: Turn the plant to the right.
gif/00000156.gif or Object--Zoom in: Zoom in on the plant.
gif/00000157.gif or Object--Zoom out: Zoom out on the plant.
gif/00000029.gif or Object--Center: Center the plant in the available space and reset its scale.
gif/00000033.gif or Object--Grow: Grow the plant by itself in optimal conditions for five days.
gif/00000117.gif or Object--Reseed: Reseed the plant (for more information on reseeding, see the Reseeding options window).
gif/00000158.gif or Object--View from side: Draw the plant from the side.
gif/00000159.gif or Object--View from top: Draw the plant from the top. The side and top view buttons work together; when one goes down the other goes up.
gif/00000160.gif or Object--Drag mode: Selects drag mode, where you can drag the plant around in the window.
gif/00000002.gif or Object--Harvest mode: Selects harvest mode, where you can pull fruits, leaves, or whole inflorescences off the plant. The drag mode and harvest mode buttons work together; when one goes down the other goes up.

Harvesting plant parts in the browser

At the bottom of the pictures side, when a plant is selected, you will see the plant harvest panel. Here you can see all the items that have been harvested from the selected plant. Items in this list will also be in the harvest panel on the garden window, but these are only the items harvested for the selected plant.

To harvest a fruit, first click the harvest mode gif/00000002.gif button to enter harvest mode. The cursor will change to a hand. Move the cursor to the base of a fruit, leaf, or inflorescence. If the item you are pointing at can be harvested, a fruit or leaf icon will appear. To harvest it, click at the base of the fruit or leaf, and a harvested fruit or leaf icon will appear in the plant harvest panel.

If the item you are pointing at cannot be harvested (because it is not normally harvested, it is unripe, or it is dead), an organic matter blob will appear (a green blob). You can still pull it off the plant -- click at its base, and it will disappear. Organic matter from the plant part will appear in the garden window.
